High-Level Palletizing
High-Level Palletizing Machine Manufacturer in USA

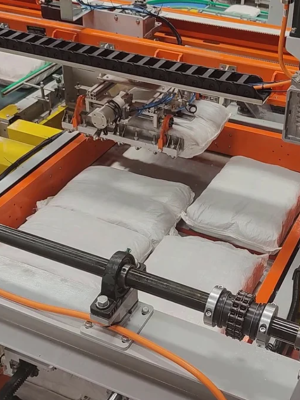

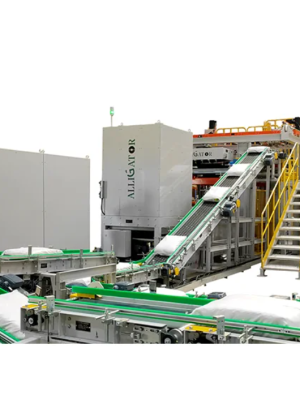

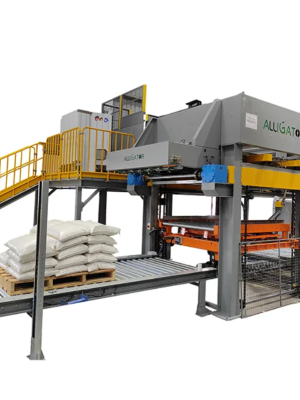

Our High-Level Push-Type Palletizer is sturdy, featuring a vertical frame that moves along a strong structure to support the pallet being built. An orienting device correctly positions bags from the filling line. They’re then arranged on a conveyor according to a set pattern, and each completed row moves to a holding area.
When a layer is finished, a pusher moves it over trapdoors that drop it onto the pallet, compacting it tightly. Then, the doors open to place the layer on the pallet, and the frame lowers to start the next layer.
Precision • Innovation • Efficiency
Industry Leaders in Packaging Automation – Our Impact
4.8/5
Customer Satisfaction Index
98%
Machine Uptime
300+ uph
Average Packaging Speed
Specifications
Type
1 in/1 out
Product size range
100mm – 600mm L
100mm – 600mm W
50mm – 400mm H
Payload
5Kg – 200kg
Speed
Layout type
Customizable (with limitations)
Product to be handled
Bags, cases, bottles, shrink packs, paint buckets, drums, totes, etc
Features
- Best stacking quality
- High-speed and efficient stacking levels
- Advanced palletizing technology for optimized performance
- Seamless integration with upstream machines
- Rugged steel construction ensures durability over many years
- Easily accessible components for inspection, adjustments, and maintenance
- Variable Frequency Drive (VFD) control of motors for accurate, smooth, and refined motions
- Swift and precise turner with assistance for consistent rotation of longer and heavier products
- Continuous overhead row pusher with surface plates for gentle product handling and increased throughputs
- Quiet electric lift
- User-friendly touchscreen controller allowing easy changeover of palletizing patterns or SKUs

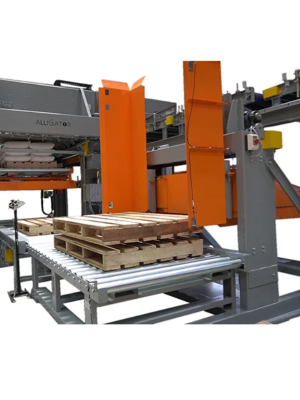

- Dispenser with a capacity of 10 to 12 pallets
Add Ons
- Light curtains at full-load discharge
- Handrails, fences, and trapped key interlocking
- Automatic locks on the hoist
- Compliant with Category 3, Performance Level D, safety standards
Safety Features
- Sheet dispensers are available to help stabilize loads
- Elevating lifts available to match existing infeed or discharge
- Expanded pallet dispenser capacity up to 25 pallets or multiple dispensers
- Ability to create taller loads to maximize the shipment truck space
Revolutionary • Intelligent • Future-Ready
Our Automatic Bagging Machines, Systems & Solutions
Robotic Palletizing
High Level Palletizing
Our High-Level Push-Type Palletizer is sturdy, featuring a vertical frame that moves along a strong structure to support the pallet being built. An orienting device correctly positions bags from the filling line. They’re then arranged on a conveyor according to a set pattern, and each completed row moves to a holding area.
When a layer is finished, a pusher moves it over trapdoors that drop it onto the pallet, compacting it tightly. Then, the doors open to place the layer on the pallet, and the frame lowers to start the next layer.
Low Level Palletizing
We specialize in Low-Level Palletizing. Here’s the premise behind the system—products on the infeed conveyor are rotated for correct orientation before reaching the row formation area. Completed rows are then pushed onto a layer-forming area, which might be a table, depending on the machine’s design.
The fully formed layer advances to a plate and is either lowered or raised to align with the stationary pallet or previous layer. The process repeats until the palletization is complete. Finished pallets move to the elevated pallet discharge conveyor.
Hybrid Palletizing
A hybrid palletizer combines a robotic system with a high-level palletizer that has a compactor. In the setup, the robot carefully arranges a layer of products on a compactor table. Once the complete layer is moved onto the pallet for stable stacking.
The system is particularly effective for stacking bags, ensuring they’re arranged securely through compaction. The upside of the hybrid palletizer lies in its flexibility. It can handle a wide variety of products and can easily adjust to different palletizing patterns.
