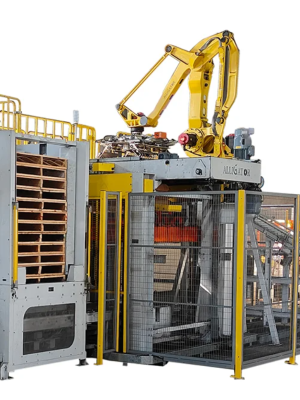

Hybrid Palletizer

Hybrid Palletizer Machine Manufacturer in USA

A hybrid palletizer combines a robotic system with a high-level palletizer that has a compactor. In the setup, the robot carefully arranges a layer of products on a compactor table. Once the complete layer is moved onto the pallet for stable stacking.

The system is particularly effective for stacking bags, ensuring they’re arranged securely through compaction. The upside of the hybrid palletizer lies in its flexibility. It can handle a wide variety of products and can easily adjust to different palletizing patterns.

Precision • Innovation • Efficiency

Industry Leaders in Packaging Automation – Our Impact

User friendly rating icon4.8/5

Customer Satisfaction Index

Machine uptime icon98%

Machine Uptime

Average packaging speed icon300+ uph

Average Packaging Speed

Specifications

Type

1 in/1 out

Solution

Robot + high-level

Product size range

100mm – 500mm L
100mm – 500mm W
50mm – 400mm H5Kg – 200kg

Payload

5Kg – 200kg

Speed

10-20 cases/min, bags – 20 bags/min

Layout type

Customizable (with limitations)

Product to be handled

Bags, cases, shrink packs, etc.

Infeed

Low

Features

  • Soft and malleable adjustable finger gripper that prevents product damage, tears, and dropping issues
  • Rugged construction intended for continuous operations and designed for harsh environments
  • Automatic pallet dispenser that can handle pallets of various sizes and quality lateral alignment bars to square layers
  • Compression cycle to level products and better stabilize loads
  • Intuitive and user-friendly touchscreen HMI
  • Electric pallet lift for quiet operation
  • Emergency-stop button, safety fences with trapped key interlocking, door safety circuit check, light curtains, and automatic locking pins on the elevator

Add Ons

  • Bag preparation systems to level or flatten bags
  • Automatic product changeovers
  • Quick-connect power and control cabling for faster installation in your facility
  • Automatic slip/top sheet dispenser
  • Exit conveyor
  • Leak, weight, and metal detection systems coupled with a rejection conveyor to remove non-compliant bags
  • Servomotor or pneumatic-powered gripper for automatic product width adjustment
  • Integration with concurrent stretch wrapping machines and third-party suppliers (labelers, printers, etc.)

Safety Features

  • Sheet dispensers are available to help stabilize loads
  • Elevating lifts available to match existing infeed or discharge
  • Expanded pallet dispenser capacity up to 25 pallets or multiple dispensers
  • Ability to create taller loads to maximize the shipment truck space

Revolutionary • Intelligent • Future-Ready

Our Automatic Bagging Machines, Systems & Solutions

Robotizing

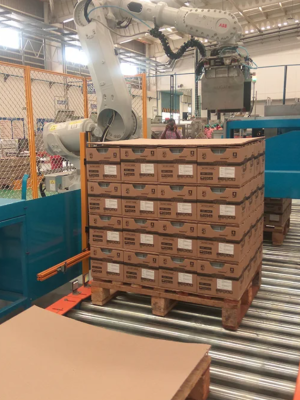

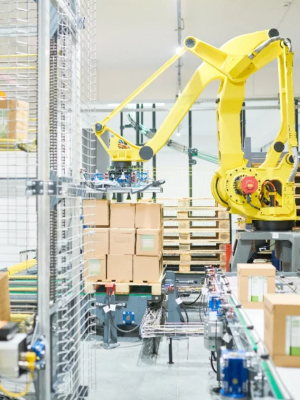

Robotic Palletizing

Robotic palletizing is an efficient alternative to its conventional counterpart, offering enhanced versatility and throughput. Our Robotic Palletizer offers improved efficiency, precision, and flexibility. We deliver complete solutions, ensuring your project is managed from start to finish by a single responsible source.
High-level palletizing

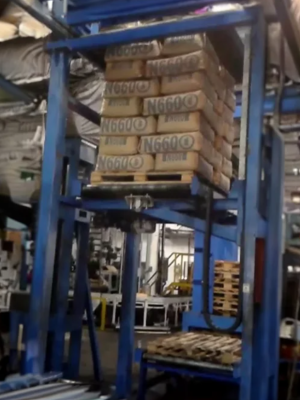

High Level Palletizing

Our High-Level Push-Type Palletizer is sturdy, featuring a vertical frame that moves along a strong structure to support the pallet being built. An orienting device correctly positions bags from the filling line. They’re then arranged on a conveyor according to a set pattern, and each completed row moves to a holding area.
When a layer is finished, a pusher moves it over trapdoors that drop it onto the pallet, compacting it tightly. Then, the doors open to place the layer on the pallet, and the frame lowers to start the next layer.

Gantry

Gantry Palletizing

We offer a versatile range of Bulk Bag Fillers, available in semi-automatic and fully automatic options, with capacities ranging from 500kg to 2000kg. Suitable for various project scales and budgets, our Bulk Bag Fillers precisely package dry granular, flakes, or powdered materials. The Bottom Vibration arrangement enhances material compaction during filling, guaranteeing superior product quality.

Low level palletizing

Low Level Palletizing

We specialize in Low-Level Palletizing. Here’s the premise behind the system—products on the infeed conveyor are rotated for correct orientation before reaching the row formation area. Completed rows are then pushed onto a layer-forming area, which might be a table, depending on the machine’s design.
