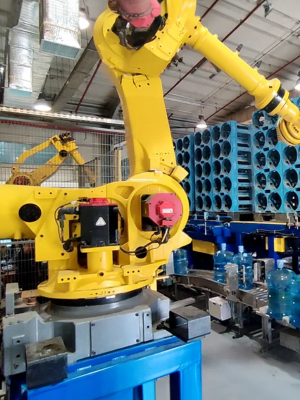

Robotic Palletizing
Robotic Palletizing Machine Manufacturer in USA
Precision • Innovation • Efficiency
Industry Leaders in Packaging Automation – Our Impact
4.8/5
Customer Satisfaction Index
98%
Machine Uptime
300+ uph
Average Packaging Speed
Specifications
Type
1 in/1 out, 2 in/2 out, 3 in/3 out or customize
Solutions
Pallet on conveyors & pallet on ground
Product size range
100mm – 1000mm L
100mm – 1000mm W
50mm – 500mm H
Payload
5Kg – 100Kg
Layout type
Customizable
Product to be handled
Bags, cases, bottles, shrink packs, paint buckets, drums, totes, etc
Features
- Robotic handling of pallets, sheets, and units
- Diverse range of durable end effectors customized to your product
- Dependable and high-performing robot
- Inclusive of palletizing conveyor, pallet positioning device, alignment conveyor, and pick-up conveyor
- Constructed with low-maintenance and easy-to-clean components
- Quick installation and commissioning process
- Intuitive and user-friendly PLC and HMI with rapid changeover of palletizing patterns through stored recipes
- Comprehensive safety features such as safety fences, interlock doors, light curtains, and approved safety management software
Add Ons
- Online dynamic check weigher available on request
- Metal detection available on request
Revolutionary • Intelligent • Future-Ready
Our Automatic Bagging Machines, Systems & Solutions

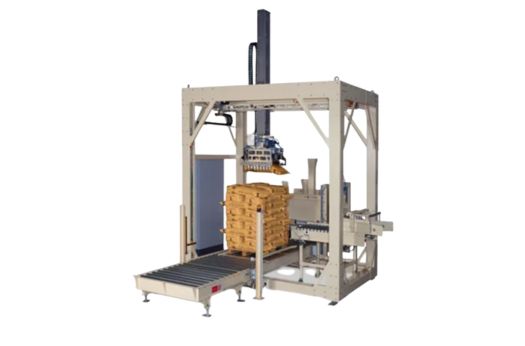

Gantry Palletizing
High Level Palletizing
Our High-Level Push-Type Palletizer is sturdy, featuring a vertical frame that moves along a strong structure to support the pallet being built. An orienting device correctly positions bags from the filling line. They’re then arranged on a conveyor according to a set pattern, and each completed row moves to a holding area.
When a layer is finished, a pusher moves it over trapdoors that drop it onto the pallet, compacting it tightly. Then, the doors open to place the layer on the pallet, and the frame lowers to start the next layer.
Low Level Palletizing
We specialize in Low-Level Palletizing. Here’s the premise behind the system—products on the infeed conveyor are rotated for correct orientation before reaching the row formation area. Completed rows are then pushed onto a layer-forming area, which might be a table, depending on the machine’s design.
The fully formed layer advances to a plate and is either lowered or raised to align with the stationary pallet or previous layer. The process repeats until the palletization is complete. Finished pallets move to the elevated pallet discharge conveyor.

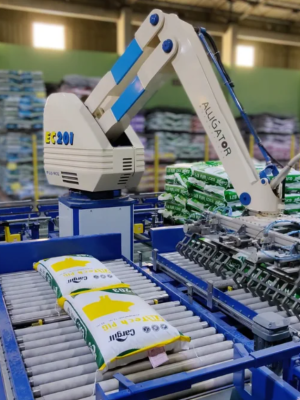

Hybrid Palletizing
A hybrid palletizer combines a robotic system with a high-level palletizer that has a compactor. In the setup, the robot carefully arranges a layer of products on a compactor table. Once the complete layer is moved onto the pallet for stable stacking.
The system is particularly effective for stacking bags, ensuring they’re arranged securely through compaction. The upside of the hybrid palletizer lies in its flexibility. It can handle a wide variety of products and can easily adjust to different palletizing patterns.
